Slitting and winding technologies

Premium Solutions for Primary Slitting

When throughput and absolute reliability count – for your profitable production of flexible plastic films, reliability and performance of your production machines count above all. The non-stop winders, primary and secondary slitting machines from Kampf have been designed to meet the highest demands and ensure a trouble-free production process. The newly developed PrimeSlitter and ProSlitter machines impress with highest performance values, a modern design paired with a well thought-out operating concept and the latest Siemens control technology.

• PrimeSlitter
• PrimeWinder
• ProSlitter

Always the right solution for flexible requirements.

When producing modern packaging solutions, the flexibility of your slitter determines the success of your production. The requirements are extremely diverse due to the wide variety of materials and composites – only one is always the same: Perfect finished rolls with maximum productivity.

With its slitter rewinders of the ConSlitter and TitanSlitter series, Kampf offers solutions tailored to your needs and they are your partner for the further development and testing of new materials. From the three categories Silver-, Blue- and BlackLine you choose together with us the best suitable solution for your application and determine the degree of automation, operating comfort and flexibility.

• ConSlitter
• ConWinder
• TitanSlitter

Precision and potential for technical applications and energy solutions

Technical applications, electromobility, and energy storage require submicron accuracy in film processing. Kampf’s technologies are proven for precise processes with low material waste and guarantee micrometer-accurate solutions for optimal product quality and process efficiency.

• TechSlitter
• MicroSlitter

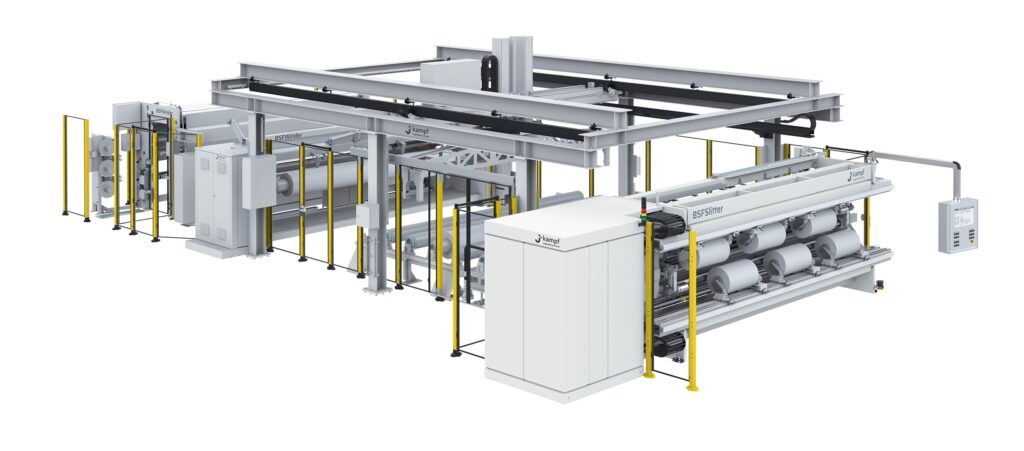

• BSF Converting Line
• BSFSlitter
• BSFWinder

Compact power – Great innovation down to the smallest detail

The market for paper and label production is dynamic: sustainability drives innovation, small print runs demand flexibility, and cost pressures require maximum efficiency. In this challenging environment, Kampf is your strong partner who combines proven technologies with state-of-the-art solutions and innovative possibilities – throughout the entire life cycle of your machines.

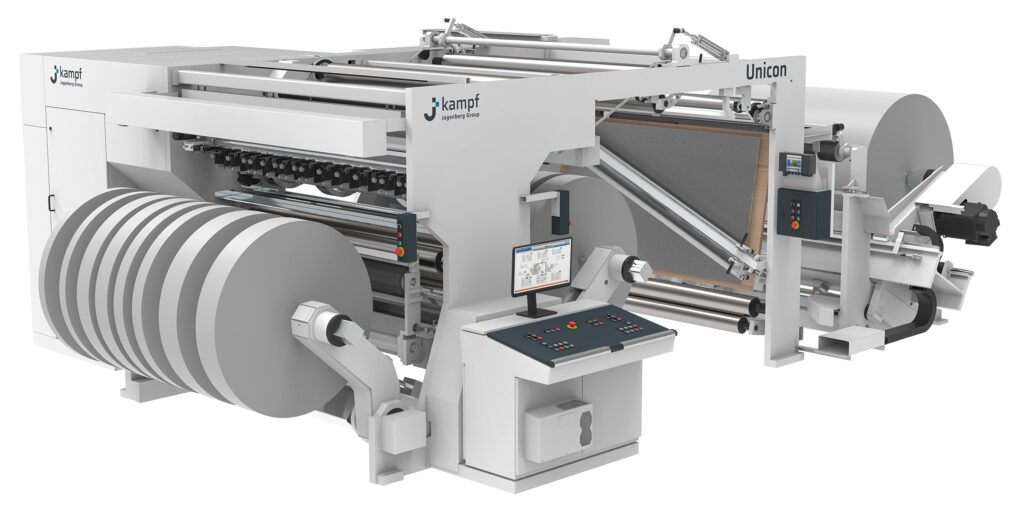

• Unicon

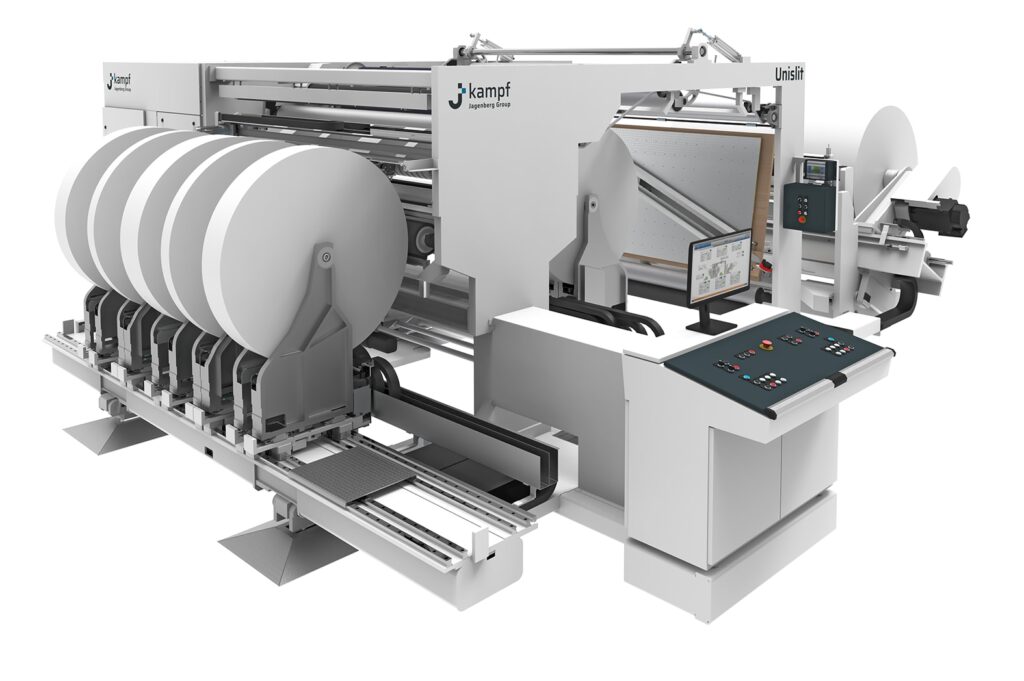

• UniSlit II c/s

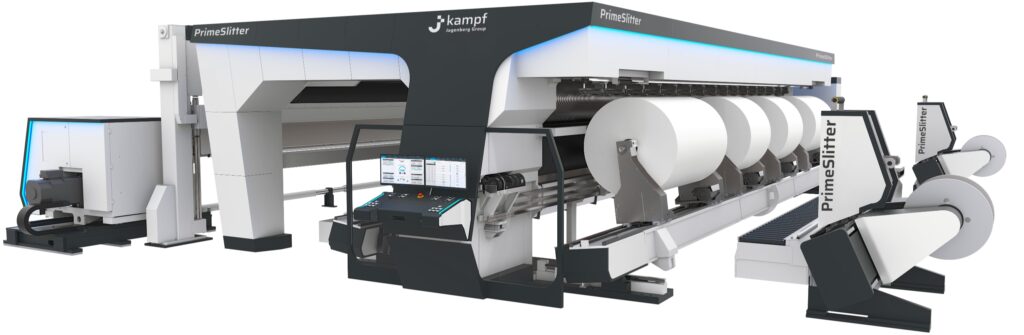

A new dimension – the Kampf PrimeSlitters.

From the cost-efficient PrimeSlitter SilverLine to the premium BlackLine: The PrimeSlitter series covers the entire spectrum of primary and secondary slitting technology – now with a working width of up to 13 m. Each machine combines decades of experience with state-of-the-art Siemens control systems, ergonomic operating concepts, and sustainable efficiency. Whether for biaxial or specialty films, thanks to intelligent automation, automatic blade changes, and minimal setup times, Kampf PrimeSlitter systems deliver maximum productivity, quality, and trouble-free operation.

SilverLine

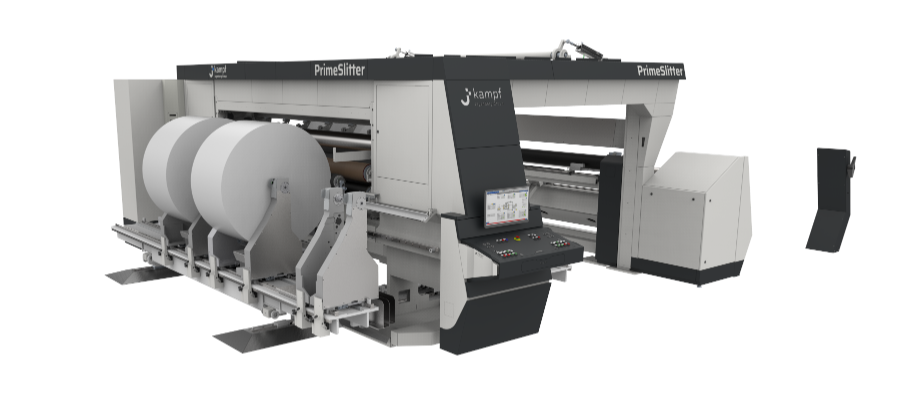

The PrimeSlitter SilverLine can be used individually as a secondary slitting machine for film and foil production with working widths up to 4m. Based on the well-known Unislit series, the design of the machines is based on many years of experience in processing various foils and films such as BOPP, BOPET, CPP, BOPA, PLA, metallized films, laminated films and capacitor films.

PrimeSlitter SilverLine CHRO

BlueLine

The PrimeSlitter BlueLine can process the thinnest capacitor film of 2 micron or for thick film up to 800 micron and is designed for working widths of 4.8 m to 7.2 m to suit your requirements. Depending on the application, you can choose from various suitable options.

BlackLine

The highest level of development in the field of primary slitting machines for BOPP and BOPET films up to 13 m working width. Newly developed winding stations can be designed for 1270 mm and 1500 mm winding diameters with a load capacity of up to 7000 kg roll weight. Intelligent automation solutions in the machines, such as automatic blade changers, as well as fully integrated devices for loading and unloading offer you optimal productivity.

Uptime is the Focus. The Sum of Solutions Makes the Difference.

Change Settings — The Smart Way to Save Time and Improve Ergonomics

Discover new embeddable solutions designed to simplify handling and reduce changeover times for:

• Chucking heads
• Contact rollers
• Slitting tools
• Finished rolls

Heavy Loads — Fast and Safe Handling

Save up to 30% of valuable time when changing parent rolls. Our integrated solution for parent roll handling, core exchange, and splicing reduces crane dependency and increases safety.

Faster Ramp-Up — More Throughput

A new set of web control functions helps your operators reach the desired quality level faster — with enhanced sustainability.

Look & Feel – Ergonomics Meets Modern Design

Simplified machine operation, optimum accessibility, and integrated safety are brought together in a completely new design and color concept.

A completely rethought operating concept introduces a next-generation Human-Machine Interface (HMI), delivering forward-looking information, ergonomically redesigned workstations, and future-ready solutions for handling and digitization.

The new PrimeSlitter features state-of-the-art Siemens control systems, precise individual drive technology, and advanced web control functions — all integrated into a proven mechanical platform, completely free of hydraulic components.

Your advantages at a glance

• Patented anti-tin-canning system
• Precise individual drive technology
• High throughput without compromising quality
• Web control function

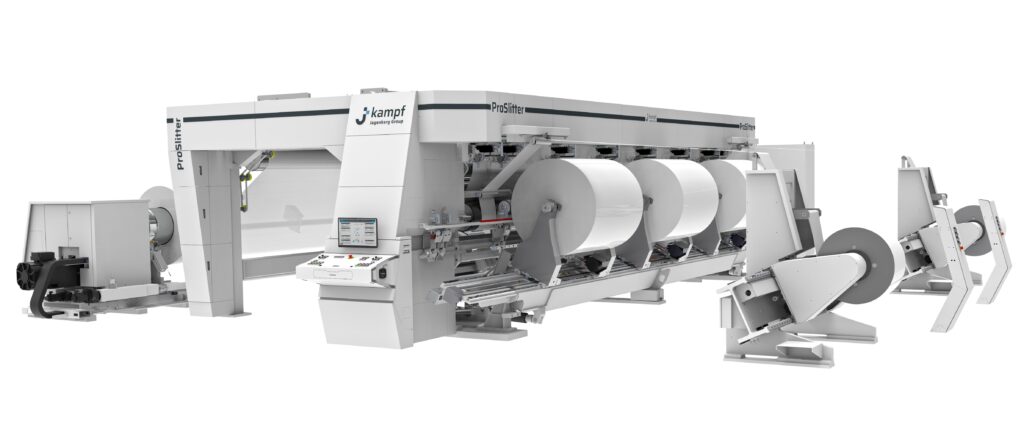

PrimeSlitter

High efficiency in slitting commodity films: no other series stands for this as much as the ProSlitter. The SilverLine, BlueLine, and BlackLine variants are part of a great tradition. The Atlas-CW and Kampf Unislit models shaped an era, and their experience is now reflected in the technical results of the ProSlitters: efficient, robust, flexible, and productive.

SilverLine

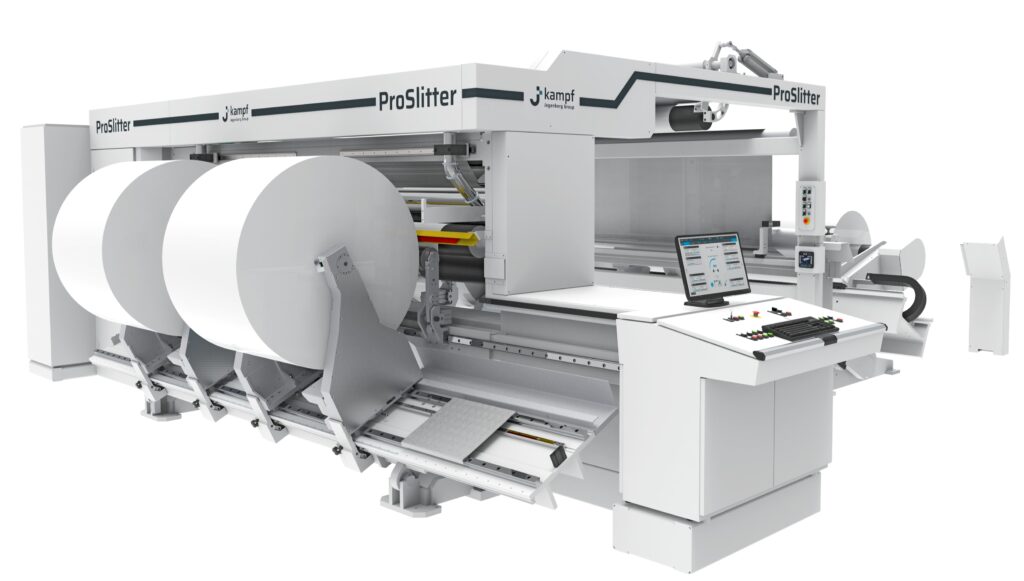

The ProSlitter SilverLine is the efficient slitter for cast, blown and calendered primary films and the ideal secondary slitter for biax films and metallized films.

Versatile and efficient

The ProSlitter SilverLine is designed for efficient slitting of cast, blown, and calendered primary films, and serves as the ideal secondary slitter for biaxially oriented films.

Fast and clean rewinding

Save valuable setup time with Quick-Lock chucking heads, reducing changeover time to just 10 seconds.

Fully electric operation

No hydraulic components — for clean, low-maintenance operation.

Your advantages at a glance

• No hydraulic components
• Highest precision
• Clean and efficient operation

ProSlitter SilverLine CRRO

BlueLine

Focused on productivity and economics

Succeeding the well proven CW and Universal series, ProSlitter marks the new era of highly efficient slitting machines for commodity films

Your advantages at a glance

• Fully electric, no hydraulics
• Time-saving with quick-Lock chucking heads

ProSlitter BlueLine CRRO

Blackline

Designed for pure productivity

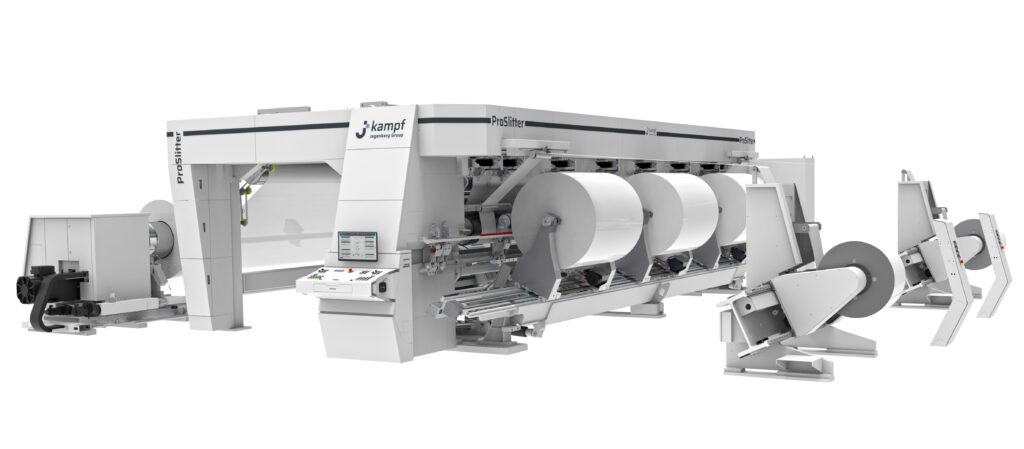

The ProSlitter BlackLine combines decades of slitting expertise to deliver exceptional performance and efficiency.

Your advantages at a glance

• Clean production – Fully electric machine with no hydraulics in the unwinding and rewinding section
• Electric knife holders – Fully automatic, fast, and extremely precise knife positioning
• Easy-mount system for contact rolls – Integrated roll-out rail for quick and operator-friendly roll changes

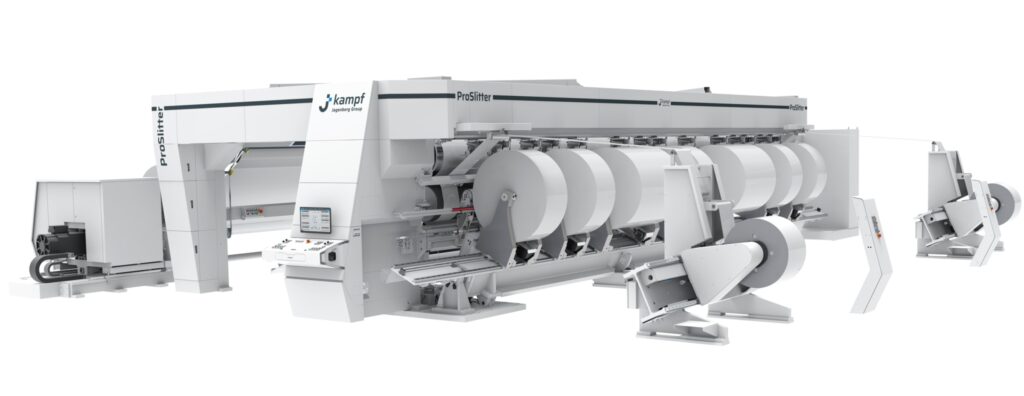

ProSlitter BlackLine CRRO

BlackLine

The backbone of efficient flexible film production

The new generation of the non-stop winder PrimeWinder CTHO is based on the proven design of Imperial winders, which have been operating worldwide for decades. Growing demands for higher speed, wider film, and increased finished roll weights made it necessary to revise the existing design.

The new PrimeWinder BlackLine series is ready for the future — with a mechanical design speed of 600 m/min, a maximum finished roll weight of 25 t, and a film width of up to 11 m.

The machine for highest quality and maximum efficiency

Unique features such as the Active Deflection Contact Roll (ADR), individual oscillation of the winding cores, auxiliary contact rolls, and core clamping units have not only been preserved — they have been further improved. New developments like smart condition monitoring of the contact roll, an enhanced cross-cutting system, and improved film threading contribute to significantly reduced waste during operation of the PrimeWinder CTHO.

Particular attention was paid during the design phase to ensuring high accessibility and reduced maintenance requirements for the machine and its components.

The PrimeWinder CTHO sets new benchmarks in reliability and winding quality. As with all Kampf machines, the drive and control technology is developed in-house by Kampf — ensuring optimal interaction between hardware and software.

From a wide range of available options, we can configure the ideal winder for all materials — including BOPP, BOPET, BOPA, BOPE, CPP, etc. — and for applications such as capacitor film, packaging film, and technical films. The PrimeWinder CTHO delivers premium quality rolls for subsequent slitting processes, with minimal waste.

Your advantages at a glance

• High speed with roller weights up to 25 t
• Actively pre-curvable contact roller
• Intelligent condition monitoring
• Individual sleeve oscillation and improved film insertion

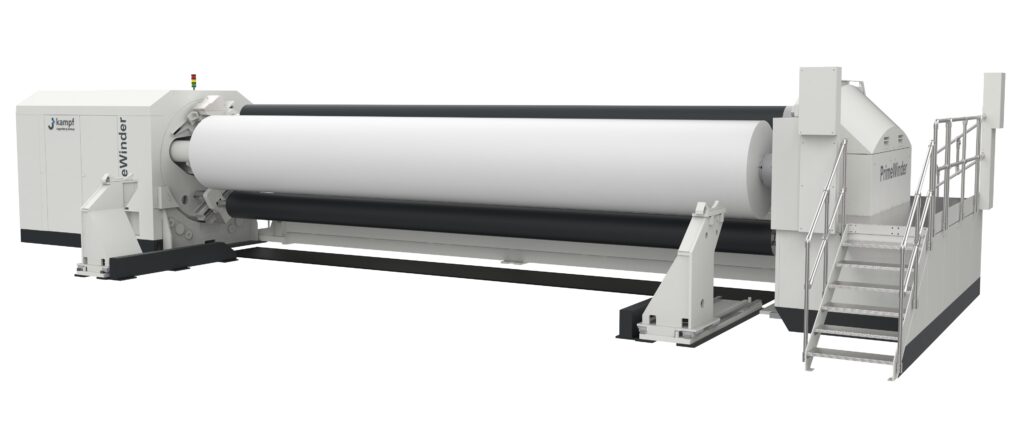

PrimeWinder BlackLine CTHO

Duplex and turret slitters – Practical. Flexible. Precise.

The ConSlitter series offers proven duplex and turret technologies for maximum flexibility and reliability. With various working widths, speeds, and modular equipment, a wide variety of materials can be processed safely and efficiently – from compact solutions to highly automated systems.

SilverLine

Maximum efficiency, top quality

The SilverLine is the ideal solution for smaller batch sizes, frequent job changes, and limited space. With its high user-friendliness and short setup time, this line is perfect for flexible use in production and development.

Practical and functional.

Do you need a slitter rewinder that can process a variety of materials and is not too complex to operate? The ConSlitter SilverLine CFRU is the reliable and economic solution for your slitting needs.

With a speed of up to 600 m/min. and two different working widths, materials up to an unwinding diameter of up to 1,000 mm can be unwound and rewound up to 610 mm. The machine is part of the proven ConSlitter series with a total of 1,000+ machines already delivered.

You can select from a flexible modular system so that the machine can be equipped exactly to your meet your requirements!

Wide range of equipment options

For perfect slitting and rewinding results:

• Splicing table
• Scissor or blade cut
• Digital positioning aid for shear cut
• Friction or expansion shaft operation
• Antistatic equipment
• Eccentric contact rolls

For high efficiency:

• Laser Core positioning aid
• Finished rewind roll push-off device
• Various rewind roll removal stands and material handling solutions
• Edge trim suction

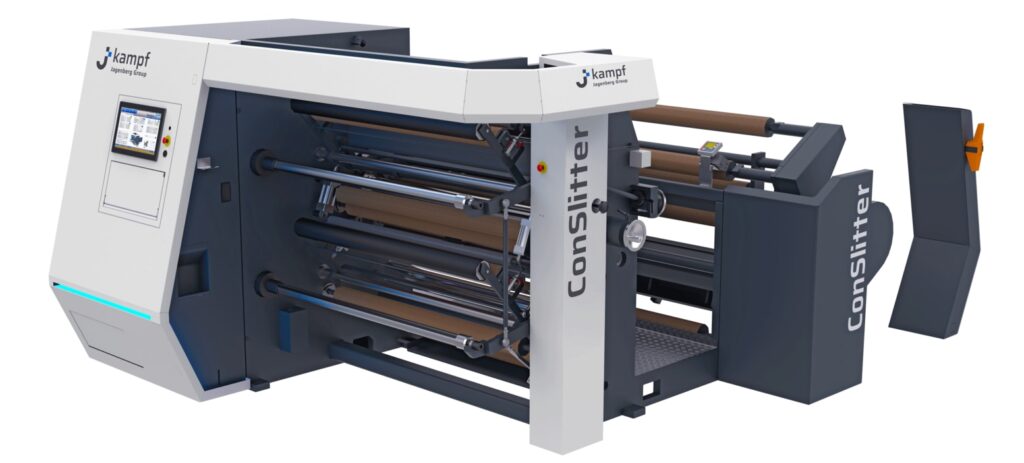

ConSlitter SilverLine CFRU

BlueLine

Look and Feel. Operating comfort in a new design.

Simplified machine operation, optimum accessibility and integrated safety are combined by a completely new shape and color concept.

The intuitive Kampf-2-touch operation is also part of the eye-catching industrial design, same as the newly designed work areas or the trend-setting handling and digitization solutions.

Behind the new shape of the ConSlitter is the latest Siemens control system combined with precise drive and controls technology along with the Kampf proven mechanical engineering

BlueLine CTRU

Two in One. For flexibility and throughput.

The combination of the proven Kampf classic Conslit with the advantages of our modern turret technology enables you to reduce downtime and sustainably increase production throughput, especially when processing smaller batch sizes.

Select from our extensive modular system the equipment features for your individual production and market environment.

• Reduce set-up times
• Automate roll logistics
• Realize data transfer

Security in a new light. Industrial safety with a clear view.

Improved awareness brings more security to your everyday life. An intelligent lighting concept communicates the current status of the machine. A color lighting system that changes according to the situation allows you to monitor the status of the machine both in the area around and from a distance. The other redesigned and fully integrated safety devices also provide you with a constant overview, even at a safe distance.

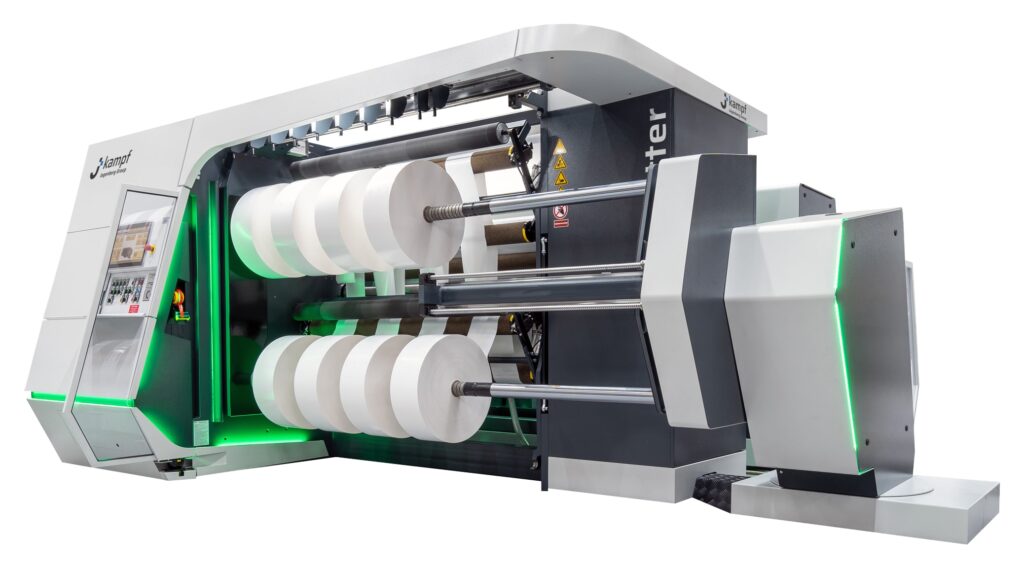

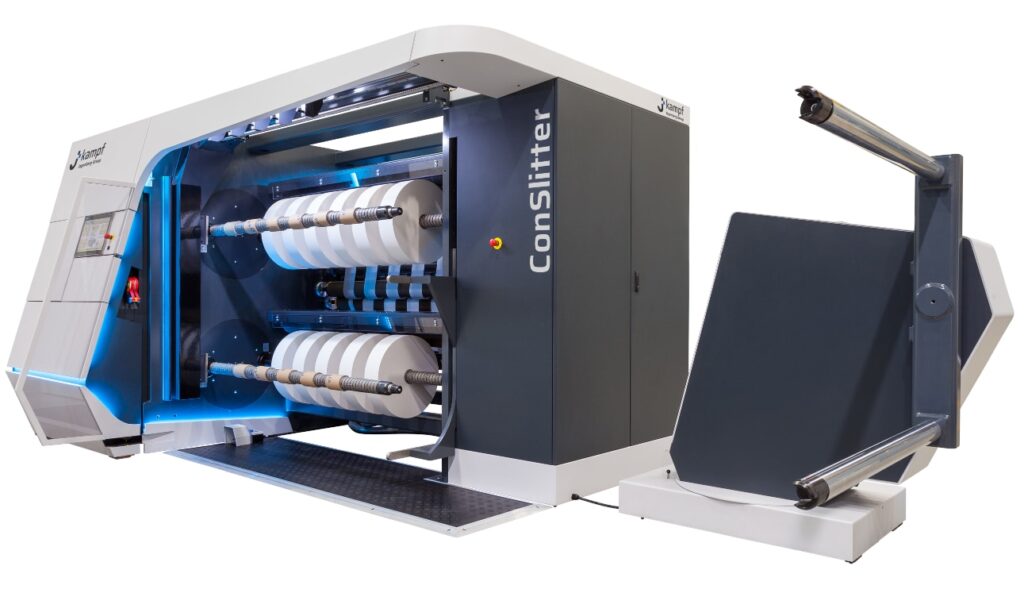

BlueLine CFRU or CFRO

Flexibility and stability

Our ConSlitter BlueLine CFRU or CFRO is the machine with the highest degree of flexibility with five different working widths, different parent roll diameters and slitting systems as well as extended options.

• Create flexibility
• Realize data transfer
• Automate roll logistics

Wide range of equipment options

Everything is possible.

Large process window for your production requirements. Modular design from unwinding to rewinding:

• Variable roll dimensions
• Variable web path: underfloor or overhead
• Flexible slitting modules
• Finished roll handling

 Kampf quality and reliability:

• Repeatable roll quality: every day, year after year
• Highest reliability through consistently good quality

Operating convenience redefined:

• New user interface with 2-touch navigation
• Integrated safety features

BlackLine

Special. Precise. Extensive.

The ConSlitter BlackLine is the right answer whenever you need to process particularly sensitive materials on a two-spindle machine or if you require a high degree of automation.

For perfect slitting and winding results

• Optional ergonomic splicing tables
• Scissor-shear cut or razor blade cut, manual or automatic
• Pneumatic single contact roll system
• Friction differential or torque winding rewind shaft options
• Antistatic equipment

For high efficiency

• Core positioning aid or automatic positioning system
• Automatic cross-cutting and lay-on system for easy roll change
• Automatic cross splicing system for sticking on / sealing
• Rewind finished roll pushing device
• Different rewind roll removal stands and material unloading options
• Edge trim suction device

Improved awareness brings more security into your everyday life. An intelligent lighting concept communicates the current status of the machine. By changing the color of the illumination according to the situation, you can monitor this in the direct surroundings of the machines as well as from a distance. With the other newly designed and fully integrated safety devices, you will always have an overview, even from a safe distance.

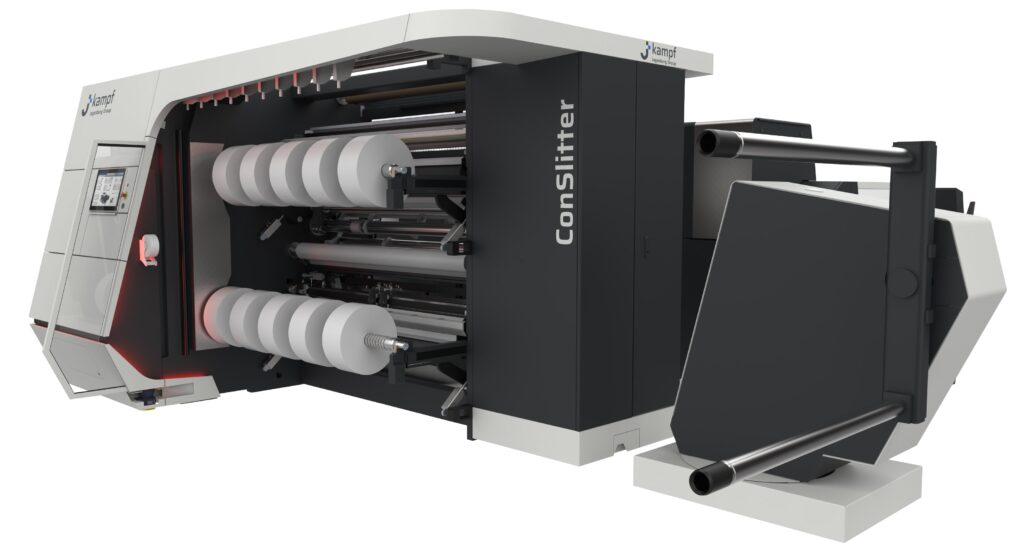

Blackline CHRO

Special. Precise. Extensive.

The ConSlitter BlackLine CHRO is the right answer whenever you need to process particularly sensitive materials on a two-spindle machine or if you require a high degree of automation.

Thanks to the linear winding system, materials can be processed effectively at higher web speeds. Special equipment options such as automatic cross splicing, cross cutting/laying and a pneumatic single contact roll system are possible.

The combination of an optional automatic slitting section with automatic core positioning also offers further set-up advantage.

Choose the equipment features that best meet your individual production requirements from our comprehensive modular system.

• Reduce set-up times
• Reduce rewind cycle times
• Create flexibility
• Realize data transfer

Look and Feel. Operating comfort in a new design.

Simplified machine operation, optimum accessibility and integrated safety are combined by a completely new shape and color concept.

The intuitive Kampf-2-touch operation is also part of the eye-catching industrial design, same as the newly designed work areas and the trend-setting handling and digitization solutions.

Behind the new shape of the ConSlitter is the latest Siemens control system combined with precise drive and controls technology along with the Kampf proven mechanical engineering.

Roll post-processing at the highest level

Individual solutions for your requirements. The perfect roll for hard and soft films, papers and laminates with the ConWinder. The ConWinder can be used for most problems that occur in everyday use.

Re-reeling – compact, universal and operator-friendly

The ConWinder BlueLine improves the winding quality of imperfectly wound rolls by re-winding and can be used to remove any flaws. It can be put to all-purpose use for hard and soft films as well as for papers and laminates.

The new compact design ensures easy operation, comfortable access and short changing times.

If required, the winder can be supplied with a slitting section for edge trimming and/or cutting and splicing table for removing flaws as options.

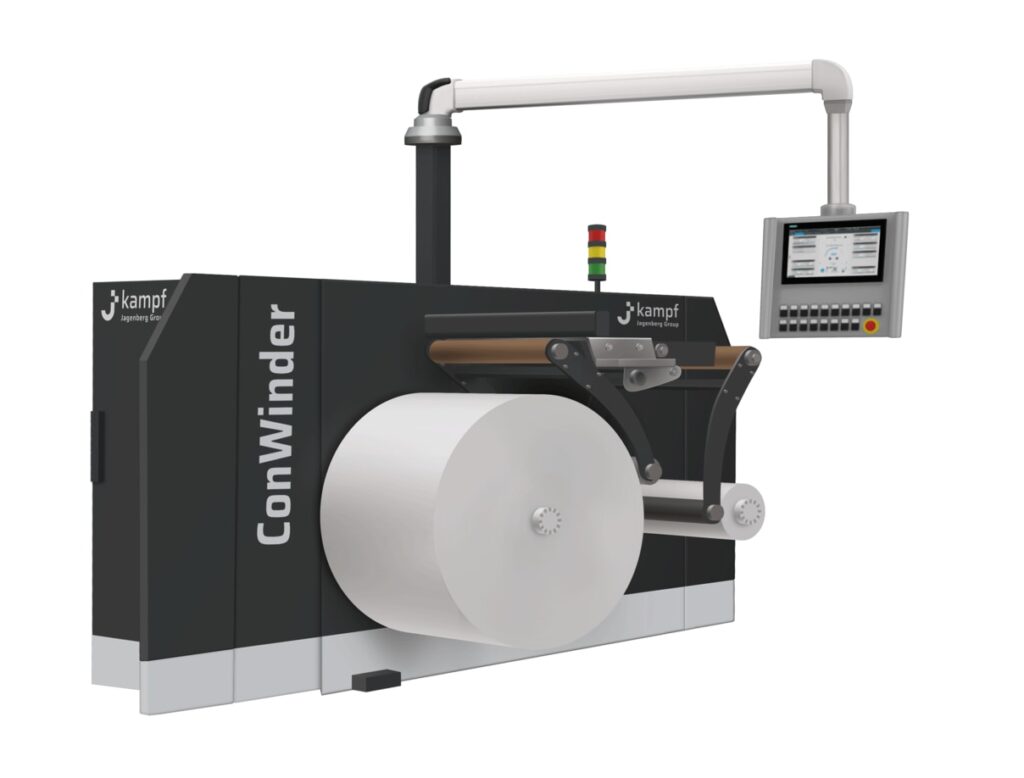

ConWinder BlueLine

Duplex and turret slitters – Compact. Reliable. Precise.

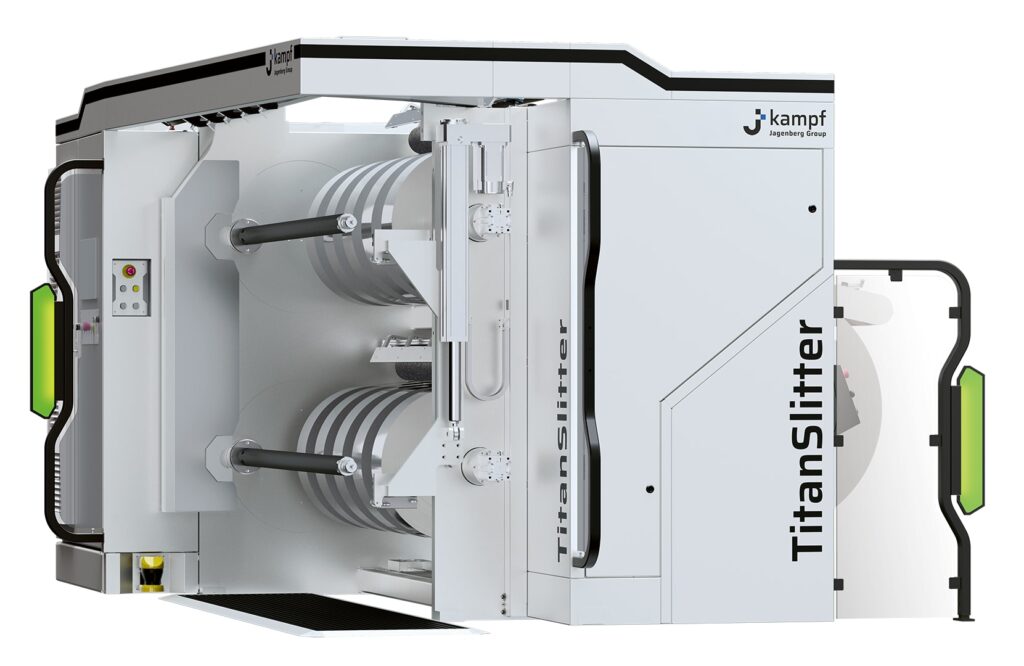

The TitanSlitter SilverLine offers a compact design, high reliability, and precise results. The duplex system enables efficient winding, while turret technology ensures short changeover times and increased productivity – ideal for small batch sizes and flexible applications.

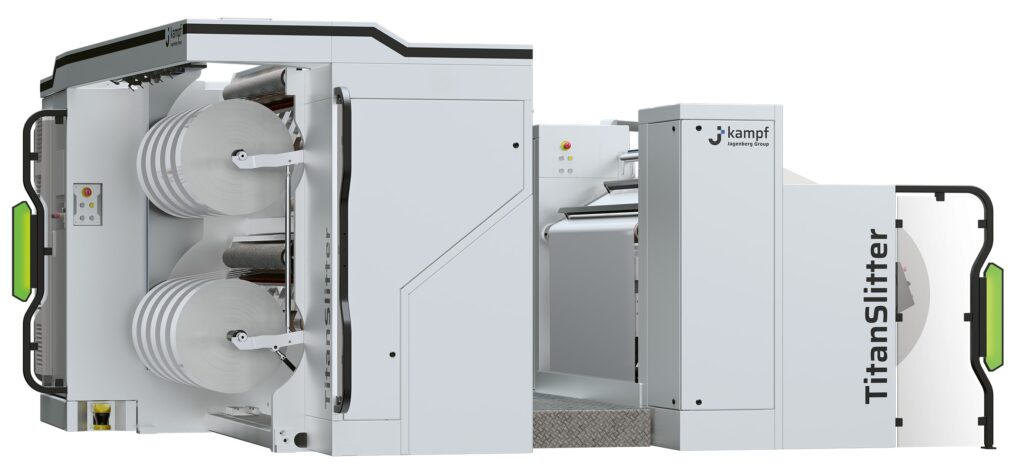

SilverLine

Silverline Duplex Slitter – Precision made easy

Do you need a duplex slitter rewinder that can process a wide range of materials, is compact in size and easy to operate? The TitanSlitter SilverLine is the reliable solution for your slitting and winding tasks.

Compact. Reliable. Precise.

With a speed up to 700 m/min. (2,296 ft/min), material widths up to 1,750 mm (69″), an unwind diameter of either 1,000 mm (39″) or 1,300 mm (51″) and a finished rewind diameter up to 610 mm (24″), it is the ideal machine for compact environments.

The duplex slitting machine is available in two different versions: with either an integrated unwind for compact environments or with a separate unwind, allowing better accessibility and the integration of additional equipment such as laser perforation or punching.

Available options to maximize efficiency

• Electrical lift-in unit for original roll
• Splicing table
• Razor blade or shear cut
• Digital positioning aid for knives
• Automatic knife positioning
• Friction or expansion shaft operation
• Laser core positioning aid
• Finished roll push off device
• Various unloading solutions
• Edge trim suction

SilverLine Turret Slitter – Precision meets efficiency

When producing a multiple set of finished reels from the original roll, the TitanSlitter SilverLine in its turret version offers the highest efficiency.

Compact. Reliable. Precise.

The turret with integrated unwind combines a compact footprint with high output.

The turret with separate unwind is the most ergonomic one with best accessibility.

All winding shafts are fully supported during rotation to prevent twisting and deflection of the shafts.

Available options to maximize efficiency

• Cross cutting (turret only)
• Dynamic shaft support during rotation
• Electrical lift-in unit for original roll
• Splicing table
• Razor blade or shear cut
• Digital positioning aid for knives
• Automatic knife positioning
• Friction or expansion shaft operation
• Laser core positioning aid
• Finished roll push off device
• Various unloading solutions
• Edge trim suction

Silverline SR800

Modular Design – High Performance

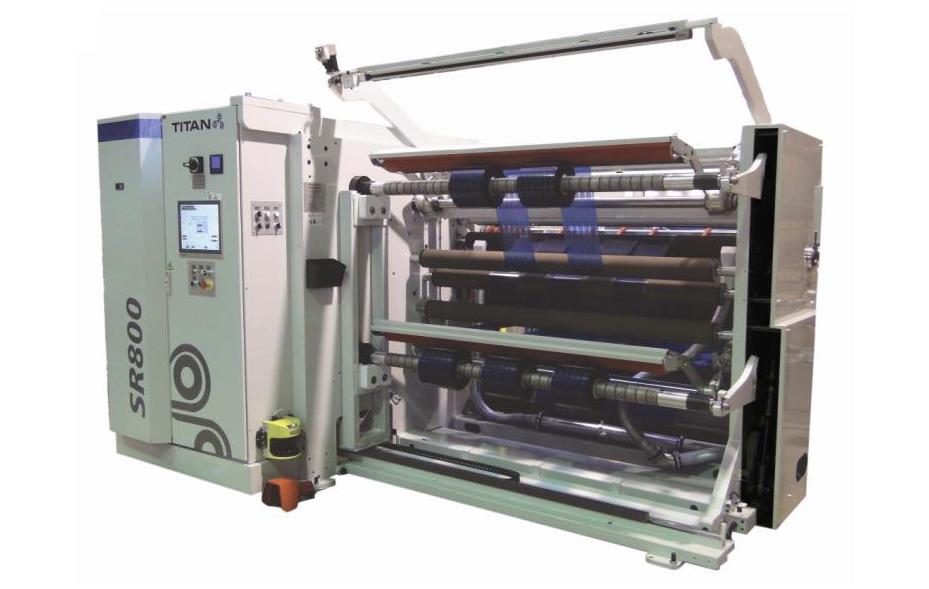

The TitanSlitter SR800 is a high performance, duplex slitter rewinder and is designed to meet the requirements of the most demanding production environments. The SR800 offers a comprehensive range of features and options.

Its modular design provides an economic and simple solution for upgrading to a higher level of automation as production demands increase.

The TitanSlitter SR800 features the latest mechanical, hydraulic, pneumatic, electronic and computer control technology to assure converters of consistent, high quality rewind reels, with improved levels of sustainability, productivity and easy job repeatability.

Materials processed include plain, printed, coated or metallized plastic films, laminates, label materials and paper from 10 to 200 µm.

Standard features

• Titan differential winding technology
• AC digital servo drive technology
• Digital line / edge guide system
• Unwind “closed loop” dual brake control
• Razor, rotary or shear slitting
• Memory for material and job set up
• S-Wrap centre drive (no nip)
• CE safety fencing and laser scanner (in EU countries)
• Range of unloading devices
• Secure internet connection for remote diagnostics

 Optional features

• Motor driven unwind
• Positive positional device for knife positioning
• Closed loop loadcell rewind control
• Impression counter
• Static eliminators
• Gap winding control
• Splice table
• Automatic individual knife positioning system for male and female knives

TitanSlitter SR800

Engineered for best quality

The slitting and winding of ultra-thin foil, net foil, especially LI-Battery foil, is one of the most demanding and challenging tasks in the foil manufacturing process. The TechSlitter, with special configuration of slitting and detection of the foil, meets all necessary requirements. It is the perfect machine for manufacturing LI-Battery foil.

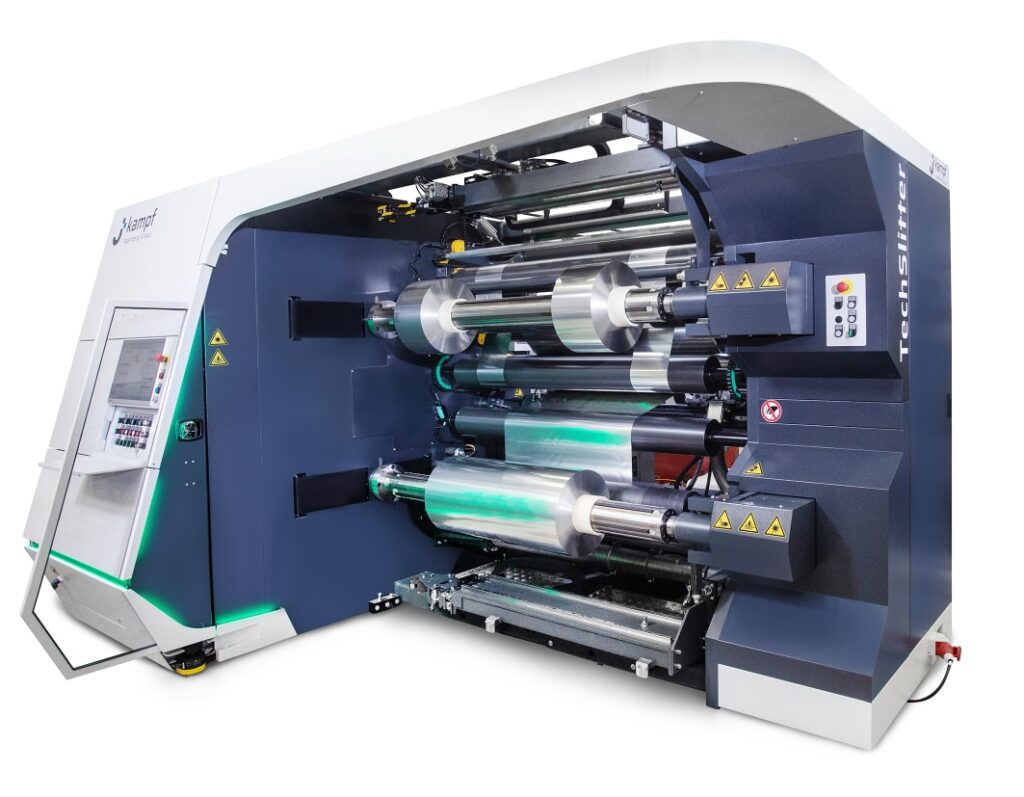

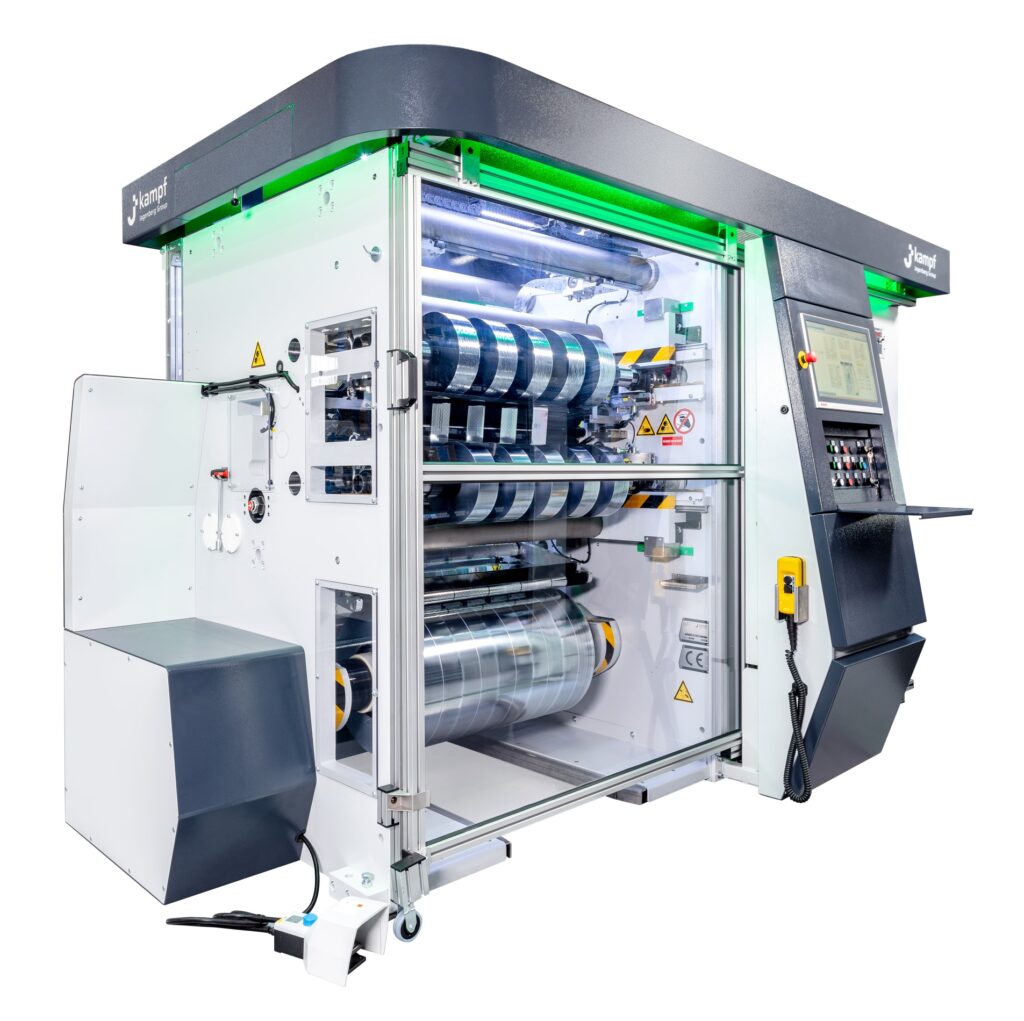

Precise. A definite strength of the TechSlitter.

The especially for aluminium and copper foil developed TechSlitter CHRO, with the patented rewind system and special arrangements to detect the foil quality, meats all necessary requirements and is the perfect machine for this process of manufacturing aluminium and copper foil.

Due to the modular design, the TechSlitter CHRO can be customized to meet all quality requirements of customers. The TechSlitter CHRO offers the integration of various inspection systems, such as pinhole detection and surface inspection, as well as surface cleaning systems.

The newly developed slitting system for the TechSlitter CHRO is perfectly adapted to the very highest quality requirements for the slitting edge especially for aluminium and copper battery foil. The TechSlitter is the logical evolution of the well proven Kampf slitting machines for net aluminium-foil, on a proven modern platform.

In addition, the TechSlitter CHRO offers due to its modular design a wide range of various options for processing aluminium- and copper battery foil.

Wide range of equipment options

• Flexible unwinder design (core / mill spool)
• Flexible modular design for hard foil, soft foil or LIB foil
• Pinhole detection system
• Surface inspection system Integration of thickness measurement
• Slitting unit with different slitting solutions
• Slitting dust suction system
• Various handling systems for loading and unloading
• Edge trim suction system
• Industry 4.0 with the@vanced

The benchmark for high-quality capacitator applications

With the development of new films, the demands on the slitting and winding technology is constantly increasing: new applications require new answers. Kampf offers application-oriented solutions based on proven technologies. These include slitting machines for processing the thinnest capacitor films or slitting and winding machines for the narrowest strips less than 1 mm wide.

The benchmark for your high quality capacitor application

Best finished roll quality through

• Sensitive direct-drive technology with Centre-/Surface-Drive
• Fully integrated unwinder with pre-compensation roller and tension measuring roller
• Straight and wave cut with highest degree of shape accuracy
• Different dimensions for wave length and amplitude available
• Expanding shafts with tailor-made expansion range for different core dimensions

Flexibility for your production requirements

• Pre-clearing device
• Pinhole counter
• Edge trim disposal
• Camera system for process control
• Finished roll removal handling cart

MicroSlitter

The non-stop turret winder for Battery Separator Film production lines

Kampf’s new generation of BSFWinder are especially designed to significantly improve the comprehensive processing and safety aspects of the complex key components inside Lithium-Ion Batteries.

Capability. A definite strength of the BSFWinder.

The BSFWinder stands for optimum quality rolls for the following slitting process at minimum waste and sets new standards in reliability and winding quality.

Rely on accurate long-term performance due to highly developed technology and proven reliability.

Your advantages at a glance

• Optimal web transfer from previous stretching line
• Special web spreading system for even transvers tension
• Most sensitive tension control
• High efficiency of winding quality and quantity
• Newest cross cut technology – tension and wrinkle-free

Customized, solution-oriented, focused on quality and future viability

We combine strong core features to guarantee the required maximum performance with new, smart and exciting solutions. Following the optimum characteristics of the production line, the BSFSlitter will be configured tailored to your film specifications to achieve the highest output.

Maximum performance and modularity.

We offer a selected range of Battery Separator Film production equipment to satisfy the increasing demands of the highly innovative Lithium Ion Battery manufacturing industries.

Your advantages at a glance

• Remarkable compactness and ultra-short overall web path
• Optimum web handling and latest digital tension control
• Latest slitting technologies considering highest quality aspects
• Advanced web control for every individual finished roll (Geometry, Tension, Nip, Torque)
• Smart design details for cleanest and hygienic production

 Production flexibility

• The unwinder offers many opportunities for individual parent roll handling
• Prepared for the integration of various web inspection units
• Fully driven shear cut option
• Blade cut option
• Edge trim winding or suction possibilities
• Multiple electrostatic discharging possibilities

 Optimum web control

• Proven edge guiding and film oscillation
• Uncompromising ultrasensitive tension compensation roller
• Advanced digital
• 4 tension sections
• Controlled and consequent individual driven rollers
• Wide range of adaptable web spreading technologies
• Specialized rewind section for precise and sensitive web control

Slitter and Winder for Battery Separator Film

Kampf offers a selected range of Battery Separator Film production equipment to meet the increasing demands of highly innovative Lithium Ion Battery manufacturers.

Highly reliable non-stop winders, as well as highly efficient primary slitting machines are producing to the highest quality standards worldwide being the benchmark for success.

As BSF Converting Line, consisting of winder, primary slitter and an automatic roll and core handling system, this automatic winding and slitting cell combines all the advantages of the individual components into one continuous process.

 Increased output through full automation.

Integrated converting line with winder, roll and core handling as well as slitter. Highest productivity through optimized cycle times. Operator free roll handling guarantees best productivity.This BSF Converting Line includes a complete safety concept together with an advanced continuous warehouse concept between winder and slitter.

BSFWinder

• Automatic unloading of mill rolls
• Auto loading of winding cores

BSF Mill roll- and core handling

• Automatic storage and handling of empty winding cores between BSF Slitter and BSF Winder
• Automatic storage and handling of mill rolls between BSF Winder and BSF Slitter

BSFSlitter

• Automatic loading of mill rolls into the BSFSlitter
• Automatic unloading of empty winding cores from the BSFSlitter

The shaft type slitter for flexible slitting width at high diameters

The Unicon is a two-spindle machine with centre/surface drive combination suited for a wide range of application. All usual materials in the field of labels and paper can be processed. Especially designed for the label and paper market, the Unicon converts these products with best results by using first class slitting and winding technology.

The precisely controlled centre drive ensures high quality of finished rolls, while the digital servo drive of the contact roll stabilizes the web tension between slitting section and contact roll – an essential pre-condition for excellent slitting results.

The Unicon is a roll slitter with an overhead web path, suited for working up to 2,050 mm and a finished roll diameter of up to 1,270 (50”) mm. Kampf’s modular design guaranties the integration of all performance features into the Unicon being required for special materials.

Based upon today’s requirements to be fulfilled by a highly efficient and operator convenient roll slitting and winding machine, especially such options have been added or new developed that reduce downtimes to a minimum, thus increasing the machine output to a maximum.

Just to mention only some of these options: The well-proven winding shafts, laser-assisted core positioning, finished roll unloading trolleys, and an optimised slitting system for all common slitting applications up to a fully automatic.

All control elements, electric and pneumatic components are easily accessible to enable a quick maintenance to reduce downtimes.

Unicon

The slitting machine for converters

The Kampf slitting and winding machine UniSlit II c/s is based on the platform of the successful UniSlit II slitting machine series. This machine has been specially developed for label and paper manufacturers who place special focus on perfect finished roll quality.

This machine, equipped with single winding stations and a driven contact roll, can be operated either with center drive, circumferential drive or both. The principle of horizontal swiveling of the winding stations as the finished roll diameter increases and a clear separation between winding tension and contact pressure during the entire winding process ensure perfect finished roll quality.

The electric drive developed by Kampf reflects our decades of experience in building slitting and winding machines. Simple operation and minimum maintenance in combination with optimum monitoring are simply convincing.

Unislit ll c/s
